Small-parts machining presents unique workholding challenges. Thin walls, tight tolerances, and micron-level runout requirements make chuck selection critical to machining success. Choosing the right chuck for complex small parts improves accuracy, reduces scrap, and increases process capability across turning, grinding, EDM, and 3- to 5-axis machining applications.
This guide explains how to select the right chuck for complex small-parts machining and how Northfield workholding solutions help maintain precision at micron-level tolerances.
1) Start with the functional datum
Question: What surface must be perfect after the cycle?
- I.D. datum: choose an internal-grip collet mandrel with pull-back onto a face stop.
- O.D. datum: choose a diaphragm or full-circle jaw chuck that centers on the datum diameter and seats on a face.
- Face datum only: use face clamps or pull-back collet that registers on the face and controls radial location with jaws or pilots.
Northfield fit: Diaphragm chucks and internal collet mandrels center on the true datum and pull the part against a fixed stop for repeatable geometry.
2) Map the part stiffness and contact strategy
- Thin walls / small I.D.: distribute load with diaphragm jaws or full-circle pads.
- Interrupted O.D. (lobes, ears): use full-circle jaws with clearance pockets that grip between features.
- Deep grip length: specify extended-reach collets with pull-back seating.

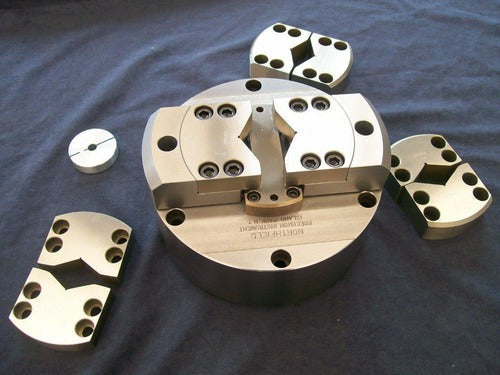

Northfield fit: Interchangeable jaw pads (polymer or hardened) tune contact width without reworking the base jaws.
3) Define the runout and form targets at the grip
Write the spec at the datum surface, not only on the finished feature.
- At the grip, target low-single-micron TIR when finished relationships are ≤ 4–5 µm.
- Require clamp/unclamp radial repeatability at the datum.
Northfield fit: Timed and labeled master jaws, hardened and ground interfaces, and on-machine repeatability guidance tied to your metrology method.
4) Set the clamp-force window
You need enough force to resist process loads without distorting the part.
- Call out a pressure-to-force range that includes near-zero for seating and a high end for cutting or grinding forces.
- For thin sections, require low-pressure actuation capability.
Northfield fit: Wide pneumatic range with documented pressure-to-force curves. Pull-back actions seat the part at low pressure, then allow the force you need for the cut.
5) Plan for speed and dynamics
High rpm or rotary tables amplify small errors.
- Specify balance at operating speed and limits for radial runout of the rotating assembly
- Avoid long rotating feed tubes for air or coolant.
Northfield fit: Balanced internals and optional static air-feed unions keep the feed tube stationary, reducing vibration at speed.
6) Address the machine envelope and media
- Tilting 5-axis tables: rear clearance is minimal. Choose self-contained pneumatic chucks or integrated 5C collet chucks that need only an air line.
- EDM or corrosive media: require stainless construction and sealed actuation, plus through-passages for flushing.
- Chip-prone milling/collet work: add through-bore air blast and chip windows.
Northfield fit: Compact rotary unions for tilt envelopes, stainless builds for submerged EDM, and chip-ejection features for collet systems.
7) Specify verification and automation
Lights-out requires proof of seating and consistent interchangeability.
- Add air-detect seat sensing on banking faces.
- Standardize back-porting, pallet interfaces, and jaw timing across machines.
Northfield fit: Air-detect logic wired to the control, pallet-ready back plates, and identical chuck builds for automated cells.
Why Northfield
Northfield Air Chucks are engineered for datum-correct location, pull-back seating, wide-range pneumatic force control, balanced high-speed operation, compact actuation for 5-axis tables, and environment-specific builds for EDM and aggressive coolants. That combination lets small-part processes achieve and hold micron-level capability with verification that works in automation.
Want help translating your part print into a complete workholding spec? Reach out to our engineers at sales@northfield.com with the specs for the product to be machined and we can find you a standard chuck, or design a custom one, to fit your workholding needs.
