Machining large components introduces challenges that smaller parts simply do not create. Increased mass, higher inertia, greater overhang, and complex geometries all affect how a part must be held during machining.
Selecting the right chuck is critical. The wrong workholding solution can lead to distortion, vibration, lost accuracy, and reduced productivity.
The right solution keeps the part stable, maintains geometric accuracy, and allows the machining cell to run efficiently.
This framework outlines how to choose the best chuck for large-diameter parts in turning, grinding, 3+2 machining, 5-axis milling, and EDM applications.
1. Start with Functional Datums and Part Orientation
Before selecting a chuck, identify the surfaces that control the final assembly and how the part will be oriented during machining.
Key considerations include:
-
Face datum + O.D. control
Pull-back seating against a hard stop with O.D. centering maintains repeatable face location. -
I.D. datum on rings or casings
Internal collet mandrels with pull-back locking provide secure face positioning
-
Multiple faces across tilt angles (5-axis)
Self-contained actuation helps ensure that orientation changes do not disturb the part’s seating.
Northfield solution:

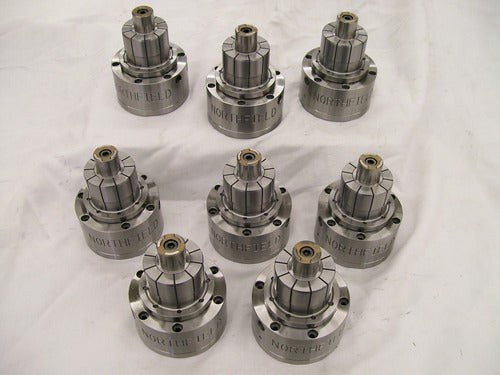

Diaphragm and collet systems that center on the true datum while pulling the part against a fixed stop. This approach maintains repeatable geometry across horizontal, vertical, and tilting machining setups.
2. Consider Size, Weight, and Moment Capacity
Large parts introduce higher loads and greater inertia, which significantly increases workholding demands.
Instead of specifying only part weight, evaluate:
- Static weight and center of gravity offset
- Bending moment (Nm) at the spindle nose
- Required holding torque during peak cutting loads
- Safety factors for emergency stops and orientation changes
Northfield solution:
Chuck bodies and adapters engineered for high loads and moment capacity. Options include large-diameter air chucks and reinforced adapters compatible with A-series and custom spindle noses.
3. Choose the Right Jaw Count and Contact Strategy
Large components often have more variation in roundness, casting geometry, and stock condition.
Proper jaw configuration helps distribute clamping force while maintaining stability.
Important considerations:
- Jaw count: 6 or 8 jaws reduce distortion on thin rings and OD shells; 3 or 4 for robust hubs.
-
Stroke: define total stroke and usable clamping window for automatic loading and variable stock.
- Contact geometry: full-circle pads for thin sections; segmented pockets for interrupted ODs; long pads to span cast or additively built surfaces.
Northfield solution:
Extended-stroke air chucks with interchangeable pad systems and diaphragm jaw sets that allow contact width and pressure to be tuned without remachining the base jaws.
4. Control Clamp Force and Prevent Distortion
Large parts often include thin sections or flexible structures that can deform under excessive clamping force.
The workholding system must provide a wide and controllable force window.
Best practices include:
- Using low pressure for initial seating
- Increasing force gradually for roughing or heavy cuts
- Ensuring uniform load distribution across the contact surface
- Selecting pad materials that match stiffness and surface finish requirements
Northfield solution:
Pneumatic systems with a wide pressure range and documented pressure-to-force curves. Diaphragm options distribute clamping force evenly, while pad libraries (hardened, polymer, textured) balance grip and surface protection.
5. Manage Dynamics, Balance, and Speed
Even at moderate spindle speeds, large rotating mass can introduce vibration if not properly balanced.
Critical factors include:
- Balancing assemblies at the actual operating RPM
- Minimizing jaw mass to reduce polar moment
- Eliminating rotating feed tubes that can excite vibration
Northfield solution:
Balanced chuck assemblies with static air-feed unions that keep the feed tube stationary. Compact rotary unions and speed-rated designs ensure stability and consistent runout performance.
6. Plan for Automation and Interchangeability
Large-part machining environments frequently rely on pallet systems, robots, or gantry loading.
The workholding solution should support seamless automation.
Key considerations:
- Standardized back-porting and pallet interfaces
- Seat verification to prevent machining on misloaded parts
- Identical tooling setups for part flips
Northfield solution:
Pallet-ready chucks with timed and labeled master jaws, integrated air-detect seating verification, and identical builds across machines to simplify automation and spare management.
7. Evaluate Environmental Conditions
Different machining processes expose workholding equipment to varying environments.
- Sealing and filtration for coolant-through or air-through
- Corrosion resistance for submerged or aggressive media
- Chip management on large pockets and pads.
Northfield solution:
Through-media passages, sealed actuation systems, stainless or treated components for EDM environments, and chip-ejection designs for collet-based systems.
Why Northfield for large parts
Northfield Air Chucks apply the same datum-correct, pull-back, and verified-seating principles at large scale. Extended-stroke pneumatic actuation gives the force window needed for heavy cuts while protecting thin sections. Balanced, speed-rated builds and static air-feed unions maintain stability. Pallet-ready interfaces, timed jaws, and air-detect banking make automation reliable across multiple machines.
Want help turning your print and load case into a complete workholding spec? Reach out to our engineers at sales@northfield.com with the specs for the product to be machined and we can find you a standard chuck, or design a custom one, to fit your workholding needs.
