1) False seating and axial float
Symptoms: Inconsistent size, face runout, steps after flip, sporadic automation faults, occasional gouging at cycle start.
Root cause: The part does not bank on the locating face or lifts during clamp. Chips on the stop, tapered jaws, or axial pull from actuation are typical causes.
Prevention:
- Use a positive hard stop on the datum face.
- Apply pull-back motion so clamping forces seat the part, not lift it.
- Verify seating before the cycle starts, especially in lights-out cells.
- Keep banking surfaces clean and protected from chips.
Northfield approach:
- Pull-back collet and diaphragm mechanisms draw the part onto a fixed stop for repeatable face location.
- Air-detect banking: small through-holes in the stop create a pressure rise only when the part is fully seated; the signal ties into the machine I/O for “part seated” interlock.
- Hardened and ground interfaces with timed masters so seating repeats after jaw changes and maintenance.
2) Clamp-induced distortion
Symptoms: Ovality on thin walls, taper that relaxes after unclamp, poor Cpk that improves when clamp force is reduced.
Root cause: Excessive or uneven pressure, narrow contact patches, or insufficient compliance when gripping small I.D.s or thin sections.
Prevention:
- Define a clamp-force window matched to part stiffness and process forces.
- Spread load using full-circle pads or diaphragm jaws.
- Tune pad geometry and contact width; avoid line contact on thin walls.
Northfield approach:
- Wide pneumatic control range that allows clamp force from near zero to high values, set with regulators or proportional valves.
- Full-circle and diaphragm jaw options to distribute load uniformly.
- Interchangeable jaw pads (including polymer or hardened options) to tune contact area without reworking the base jaws.
- Documented pressure-to-force curves to set force consistently across cells.
3) Concentricity and TIR drift
Symptoms: TIR grows across shifts, roundness harmonics after jaw service, mismatch between measurement datums and production datums.
Root cause: Locating on a non-datum surface, wear or contamination at jaw interfaces, untimed masters, or adapter stack-ups.
Prevention:
- Center on the true datum (I.D. mandrel or datum diameter).
- Time and label masters; control jaw interchangeability.
- Harden, grind, and keep interfaces clean.
- Align metrology fixturing to the same datums used in production.
Northfield approach:
- Datum-correct centering using diaphragm chucks or I.D. collet mandrels that reference the actual datum surface.
- Timed and labeled master jaws for plug-and-play interchangeability across machines.

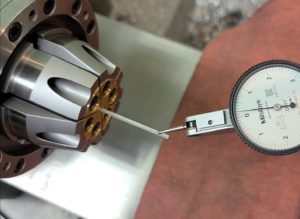

- On-machine repeatability targets at the datum when specified, with guidance on verification (e.g., air gage or runout probe).
- Pallet/back-porting standards to minimize adapter stack-up variability in automated cells.
4) Dynamic instability at balancing speed
Symptoms: Chatter bands, waviness, poor finish, wheel or tool loading, vibration alarms on high-rpm spindles or tilting tables.
Root cause: Imbalance, eccentric jaws, long rotating air tubes, inadequate chuck stiffness or poor balance at operating speed.
Prevention:
- Balance the rotating assembly at the actual operating rpm.
- Minimize polar moment and mass eccentricity in jaws and pads.
- Eliminate long rotating feed tubes where possible.
Northfield approach:
- Balanced internals and lightweight jaw/pad options to control mass and polar moment.
- Static air-feed unions that keep the air tube stationary; the rotary union mounts at the adapter, removing the long rotating tube that can excite vibration.
- Speed-rated builds with documented balance and runout limits aligned to your process rpm.
5) Access, chip, and environment failures in multi-axis and EDM
Symptoms: Collisions or interference on tilt, chips packing collets, sticky clamps, corrosion in submerged EDM, unreliable seat sensing.
Root cause: Tight envelopes behind tilting platters, poor chip evacuation paths, standard alloy steels in deionized water, unsealed actuation.
Prevention:
- Place the actuator inside the chuck body to clear the tilt envelope.
- Provide air- or coolant-through passages and chip-ejection features.
- Use corrosion-resistant materials and sealing suitable for the fluid environment.
Northfield approach:
- Self-contained pneumatic actuation inside the chuck body for 3 - 5-axis tables with minimal rear clearance; compact rotary unions fit behind vertical platters.
- Through-bore air blast and wire-cut chip windows on collet bodies to clear debris during milling or EDM.
- Stainless-steel constructions and treated components for submerged EDM, with sealing and filtration guidance for long service life.
Why Northfield Air Chucks
The best way to improve precision is to remove error at the grip. Northfield Air Chucks are engineered around:
- Datum-correct location and pull-back seating for repeatable geometry.
- Verified seating through integrated air-detect logic tied to the control.
- Controllable clamp force over a wide pneumatic range to protect thin walls and resist process loads.
- Balanced, speed-rated assemblies and static air-feed options for stable high-rpm operation.
- Environment-specific builds for 5-axis milling, grinding, and submerged EDM.
If you want help turning these controls into a quantified spec for your part and process, reach out to our engineers at sales@northfield.com with the specs for the product to be machined and we can find you a standard chuck, or design a custom one, to fit your workholding needs.
