What “Precision” Really Means in Hard Turning and Grinding

Precision is not a single number. It is the combined effect of machine capability, spindle behavior, workholding, tooling, process control, environment, and measurement. Here is a concise framework for teams running hard turning and grinding with micron-level requirements, and how Northfield Air Chucks help you hit them.

Define The Terms

• Accuracy: closeness to target measurement.
• Repeatability: how consistent and tightly finished multiple products will be machined.
• TIR (runout): radial error that includes centering and spindle effects.
• Form error: roundness, cylindricity, flatness.
• Surface integrity: roughness and subsurface condition.

You can have great repeatability and still be wrong (offset). Likewise, you can hit size and miss geometry (e.g., cylindricity). Specify what matters for function, not just one number on a print.

Hard Turning vs. Grinding: Precision Capabilities Compared

Both processes can achieve micron-level size control, but they differ significantly in achievable form, risk profile, and robustness.

Comparison Summary

Hard turning (≥ 45 HRC): short cycles and flexibility; watch for lobing, thermal drift, and notch wear. Keep uncut chip thickness above the tool hone to avoid plowing.

Grinding: superior roundness and cylindricity with the right wheel and dress; manage burn risk, wheel loading, and balance.

When the form must be ≤ 2–3 µm, grinding is usually safer. When geometry is moderate and part mix is high, hard turning can be more productive if dynamics and workholding are strong.

The Precision Budget

Treat precision as a sum of bounded contributors:

• Spindle error motion (synchronous & asynchronous)
• Workholding concentricity & seating (jaw/collet geometry, pull-back action, pad compliance)
• Tooling/wheel condition (edge prep, wear land, wheel dress state and balance)
• Machine dynamics (static/dynamic stiffness, thermal drift)
• Environment (ΔT and gradients across part/fixture)
• Measurements (gage R&R, fixturing, filtering)

Allocate tolerance across contributors and control the largest terms first. A practical split: 40–50% to machine and workholding, 30–40% to process variables, 10–20% to measurement and environment.

Thermal control is essential. Steel grows about 11 µm/m/°C. On a 100 mm feature, a 1 °C shift is ~1.1 µm. Warm up the machine, stabilize coolant and air, and measure at 20 °C or compensate.

Workholding is Decisive

Hard turning: You’re cutting at significant forces on hardened material. Any compliance or micro-slip shows up as taper, lobing, or chatter.

Grinding: Normal forces are lower but persistent; seating and runout control dominate finish and form.

Rule of thumb: When form (roundness/cylindricity ≤ 2–3 µm) is the driver on hardened parts, grinding is usually safer. When size and geometry are moderate and the part mix is high, hard turning can win on economics—if workholding and dynamics are right.

What to specify:

• Location strategy: Grip on the true datum (I.D. mandrel, pull-back onto a face, or diaphragm/collet centered on the datum diameter).
• Seating: Positive stops + pull-back action to eliminate axial float.
• Concentricity at the grip: ≤1–2 µm TIR at the datum surface is a practical benchmark for sub-5 µm features.
• Force control: Low enough to avoid distortion, high enough to resist cutting/grinding forces. Pneumatic control with a broad usable window is ideal for thin walls and small I.D.s.
• Balance & air/coolant-through: Critical over ~5–6 krpm; eliminate rotating feed tubes where possible to avoid vibration.
• Verification: Air-detect/seat sensing on banking faces is cheap insurance in automation.

Measurements That Matches The Claim

• Roundness/cylindricity: use a roundness gauge; CMM point clouds can miss harmonics.
• I.D. size & taper: air gaging shines in the micron regime.
• Surface: contact stylus at appropriate cutoff/filter (e.g., ISO 4287 parameters).
• Process capability: for critical features, target Cpk ≥ 1.33 at minimum; 1.67+ in lights-out.

Gage R&R should be ≤10% of tolerance, and fixtures for measurement must mimic production locating.

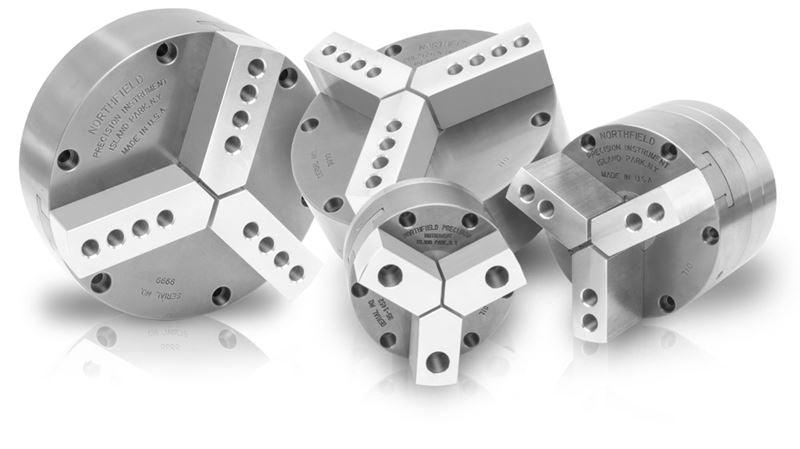

Northfield Air Chucks Deliver World-Best Precision

Northfield Air Chucks are engineered to control the workholding portion of the precision budget and to verify it in production. Many shops treat them as the most precise chucks available because they address the dominant error sources at the grip point.

How the design supports micron-level results

• Datum-correct location and pull-back seating place the part against a fixed face stop and remove axial float.

• Verified seating with air-detect banking surfaces confirms the part is fully seated before the cycle starts.

• A wide pneumatic force window enables clamp force from near zero to very high values, protecting thin walls while resisting process loads.

• High-speed stability through balanced internals and optional static air-feed unions that eliminate long rotating tubes.

• Environment-ready options including stainless constructions for submerged EDM and air- or coolant-through for chip evacuation.

• Automation-ready interchangeability with timed and labeled master jaws, back-porting, and pallet interfaces.


What you can expect

With application-specific specification and verification, Northfield Air Chucks routinely support 1 µm-class repeatability at the datum and stable form results through tool and wheel life.

Next step

If you want to translate these principles into a quantified precision budget for your part, our engineers can help specify TIR at the datum, clamp-force windows, and verification methods for your cell. Contact sales@northfield.com.
