Key Features:

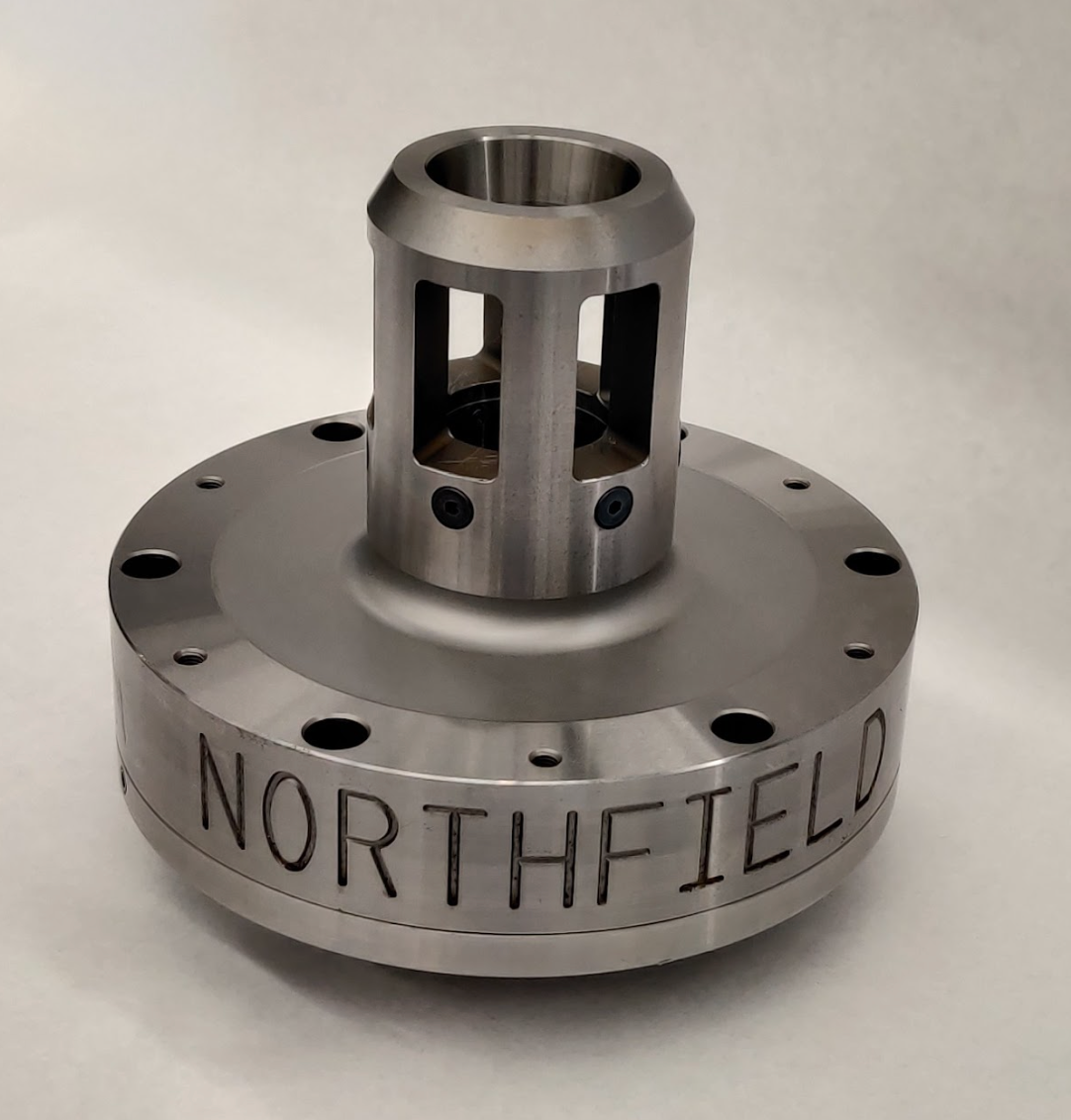

Below is a snapshot of what makes this chuck ideal for space-constrained, multi-axis machining centers:
- Self-contained pneumatic actuator —housed entirely within the chuck body.
- Ultra-slim rotary union —clears the 1–2 in. space typically available behind vertical tilting tables.
- Through-bore air-blast passage —blows chips out of the collet on every cycle.
- Wire-cut chip-ejection windows —slots in the body and collet let coolant carry debris away.
Key Differentiators
Here’s why our design stands apart from conventional 5C collet chucks:
- Clearance behind spindle: accommodates even the smallest clearance behind Tilting rotary tables.
- Maintenance friendly: integrated air blast and chip windows slash cleanup time.
- Plug-and-play: only a shop-air line is needed—no special hydraulics, wiring, or actuators.
- Available Sizes: These chucks are available in 3C, 5C, 3J, 16C, 20C & 25C models.
Northfield precision offers the same quality and reliability that defines our turning and grinding chucks.
Applications
A single chuck format covers a surprising range of parts:
- Tilting rotary tables on 4- and 5-axis mills where back-clearance is minimal.
- Automated cells requiring fast, reliable collet chuck applications.
- Lights-out machining of medical, aerospace, or general-engineering components where chip control is critical.
- Retrofits replacing manual 5C collet fixtures to boost throughput.
Contact Northfield for Custom Collet Chucks
Ready to see if Northfield’s integrated collet chucks fit your rotary-table challenge? Contact our engineering team at sales@northfield.com to discuss specs, options, and a tailored quotation for your work-holding needs.
