Rapid Chuck Replacement Delivers Micron Accuracy in Weeks

A leading global producer of precision fuel-injection systems urgently needed to replace a worn Japanese-made diaphragm chuck on a high-speed lathe. To keep production on schedule, the new work-holding solution had to meet micron-level accuracy, incorporate an air-detect stop, and arrive far sooner than the previous chuck supplier’s projected six- to eight-month lead time.

Edward Humphries October 9, 2025
Rapid Chuck Replacement Delivers Micron Accuracy in Weeks Rapid Chuck Replacement Delivers Micron Accuracy in Weeks
> Rapid Chuck Replacement Delivers Micron Accuracy in Weeks
Rapid Chuck Replacement Delivers Micron Accuracy in Weeks
Table of Contents

Manufacturer’s Challenge

Replacing the chuck wasn’t just a like-for-like swap—the application pushed the limits of accuracy, speed, and sensing:

  1. Hold components to ≤ 0.0002 in. (5 µm) total runout during turning and internal facing.
  2. Withstand sustained spindle speeds of 6,700 rpm without inducing vibration.
  3. Integrate an air-detect / part-seat-sensing stop .
  4. A delivery window measured in weeks, not months, to avoid crippling downtime.

Northfield Precision’s Solution

We delivered a turnkey system centered on a Northfield Model DPH-400W, 4-in., 6-jaw diaphragm chuck featuring:

  1. Special jaws + air-detect stop —custom-machined to the part profile

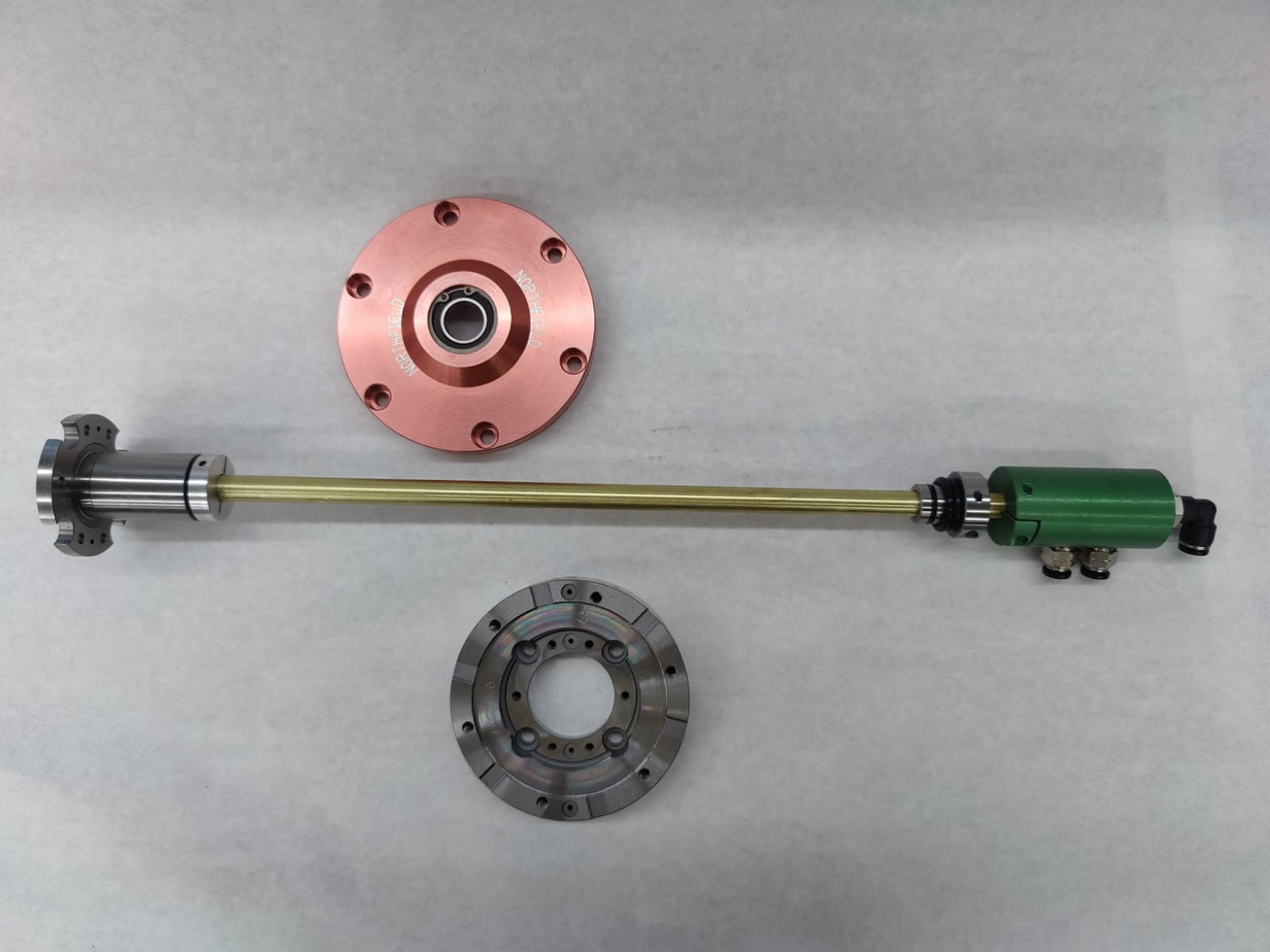

  2. Static air-feed tube design —the rotary union mounts directly to the chuck adapter with ABEC-7 bearings and a composite face seal, eliminating the traditional rotating feed tube that can vibrate at high rpm.
  3. Coolant / air-through capability — Connects to an air detect / part seat sensing part stop

The chuck repeats to ≤ 0.000040 in. (1 µm) T.I.R. and the static feed-tube arrangement is rated for spindle speeds above 12,000 rpm , delivering ample headroom for future process changes.

Results

Machine in Production in 8 Weeks
Zero Vibration from Air-Feed System
Micron-Level Repeatability Exceeds 5 µm Requirement
Engineer's Tip

When running high-speed lathes with micron-level tolerances, choose a static air-feed tube over a traditional rotary feed tube to minimize vibration and enhance part quality. Always verify chuck repeatability after installation to ensure your system consistently meets tight runout requirements.
